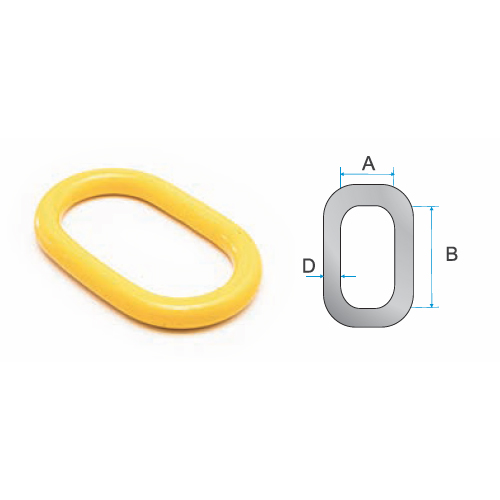

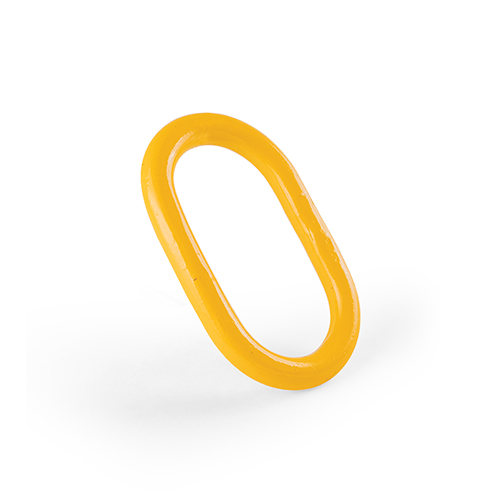

ANELÃO - Modelo AN
| CÓD DE TRAB. TON. | DIMENS. A | DIMENS. B | DIMENS. C | DIMENS. D | PESO POR PEÇA kg | MODELO MR |
|---|---|---|---|---|---|---|
| 0,85 | 55 | 100 | 9,5 | 3/8" | 0,29 | AN-10 |
| 1,50 | 64 | 127 | 12,7 | ½" | 0,36 | AN-13 |
| 2,50 | 67 | 132 | 15,9 | 5/8" | 0,68 | AN-16 |
| 3,50 | 70 | 140 | 19,0 | ¾" | 1,00 | AN-19 |
| 4,50 | 79 | 159 | 22,2 | 7/8" | 1,60 | AN-22 |
| 6,00 | 89 | 178 | 25,4 | 1" | 2,20 | AN-25 |
| 7,50 | 100 | 200 | 28,6 | 1.1/8" | 3,20 | AN-29 |
| 9,00 | 111 | 222 | 31,8 | 1.1/4" | 4,20 | AN-32 |
| 11,0 | 122 | 244 | 34,9 | 1.3/8" | 5,70 | AN-35 |
| 13,0 | 133 | 267 | 38,1 | 1.1/2" | 7,20 | AN-38 |
| 17,0 | 152 | 305 | 44,5 | 1.3/4" | 11,30 | AN-44 |
| 21,0 | 178 | 356 | 50,8 | 2" | 17,10 | AN-51 |
| 25,0 | 203 | 406 | 57,2 | 2.1/4" | 24,60 | AN-57 |
| 32,0 | 203 | 406 | 63,5 | 2.1/2" | 30,90 | AN-63 |
| 37,0 | 229 | 406 | 69,9 | 2.3/4" | 38,80 | AN-70 |
| 45,0 | 250 | 450 | 76,2 | 3" | 51,00 | AN-76 |
